Part Number
1071863
Brand
SICK
SKU
IQ40-40NPPKK0S
Stock Status
In StockCategory
Process Automation
Subcategory
Products Detection sensors Inductive proximity sensors > Products > Detection sensors > Inductive proximity sensors > IQG > IQ40-40NPPKK0S
Certificates
European conformity (CE)
Regulatory Compliance Mark (RCM)CPUK Conformity Assessed (UKCA)EU declaration of conformityUK declaration of conformityACMA declaration of conformityMoroccan declaration of conformityChina RoHS

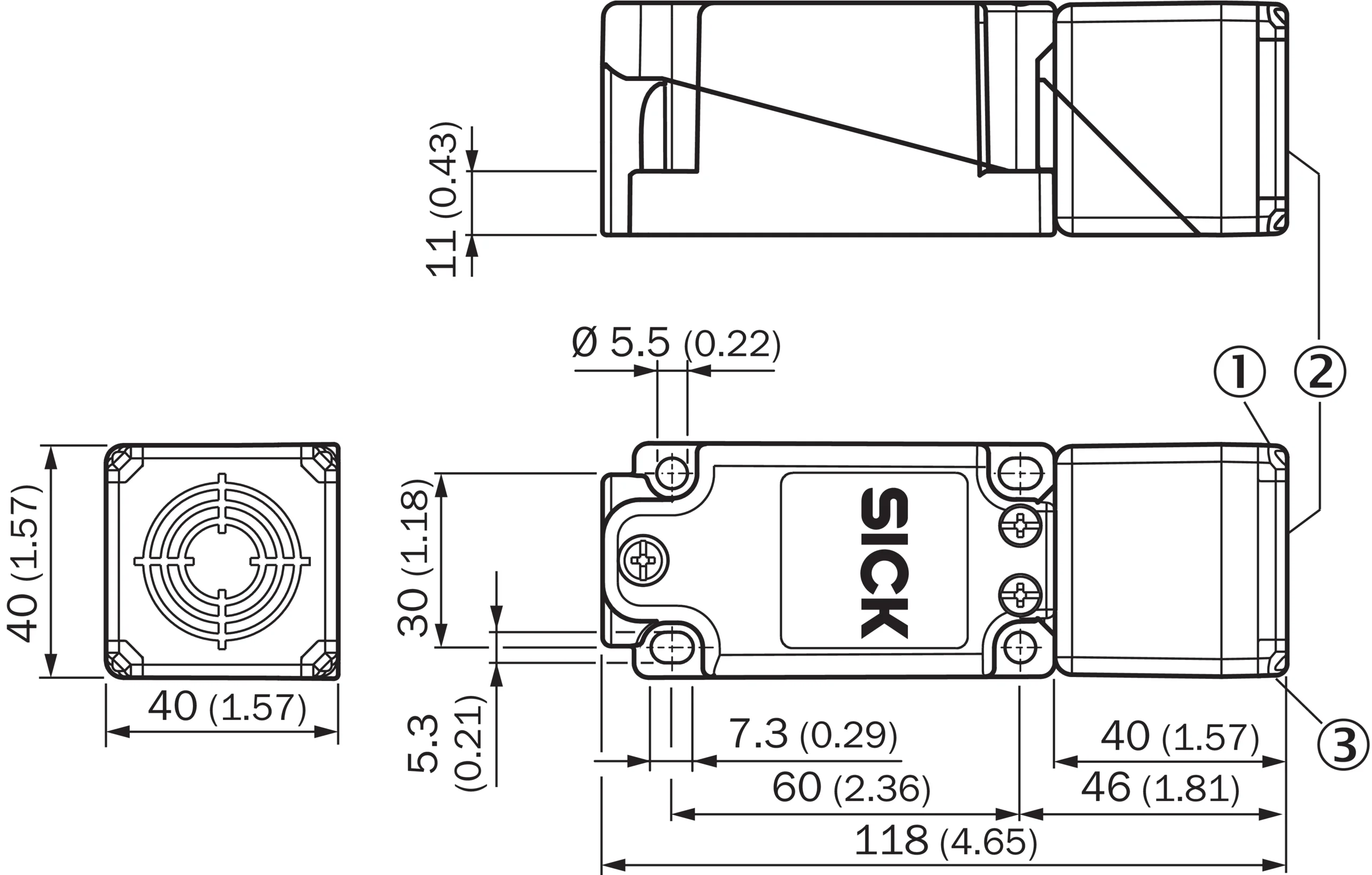

Regulatory Compliance Mark (RCM)CPUK Conformity Assessed (UKCA)EU declaration of conformityUK declaration of conformityACMA declaration of conformityMoroccan declaration of conformityChina RoHSTechnical Drawings
Click to enlarge

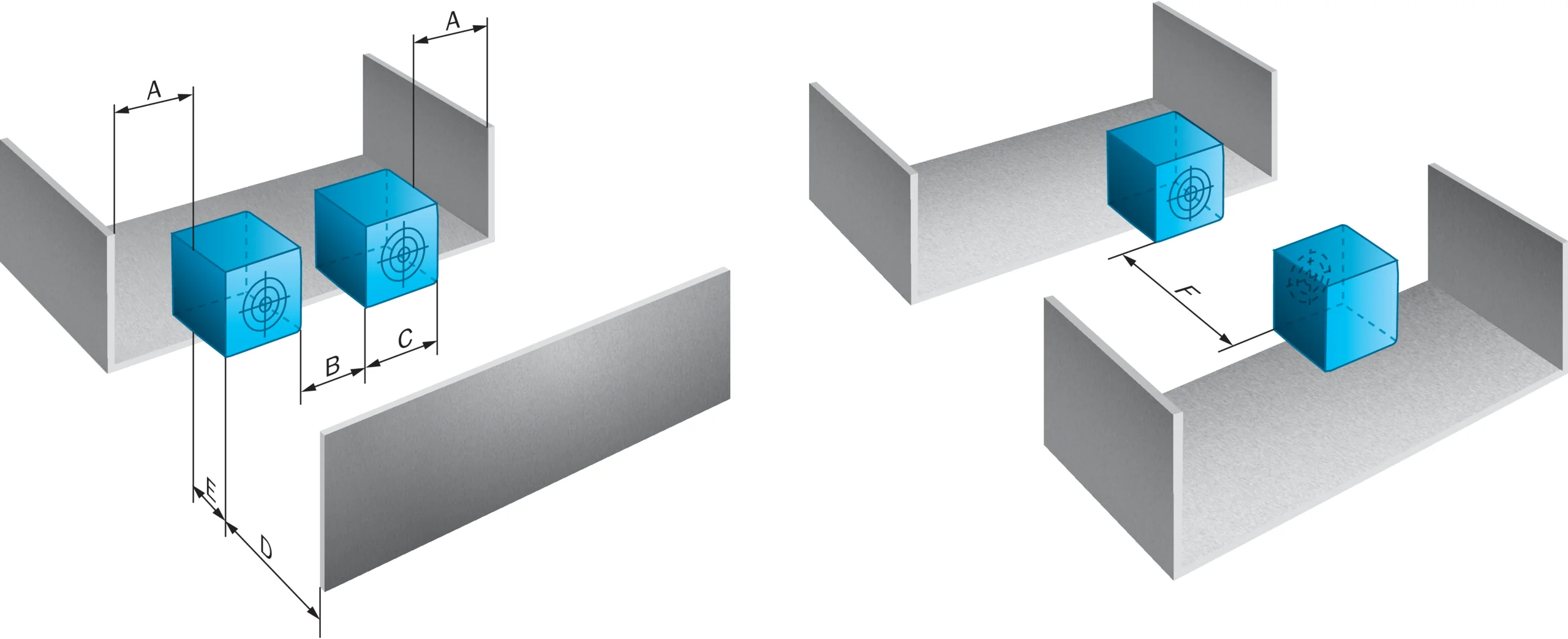

Installation note
INDUCTIVE 40mm PNP NO/NC
SICK Inductive proximity sensors
Price
Contact for Price
Request a quote for pricing and availability
Product Features
- Housing: Standard design
- Connection type: Cable gland
- Output function: Complementary
- Enclosure rating: IP67, IP68, IP69K
- Sensing range Sn: 40 mm
- Switching output: PNP
- Electrical wiring: DC 4-wire
- Installation type: Non-flush
- Switching frequency: 100 Hz
- Special applications: Difficult application conditions
- Safe sensing range Sa: 32.4 mm
- Switching output detail: PNP
- Dimensions (W x H x D): 40 mm x 40 mm x 118 mm
